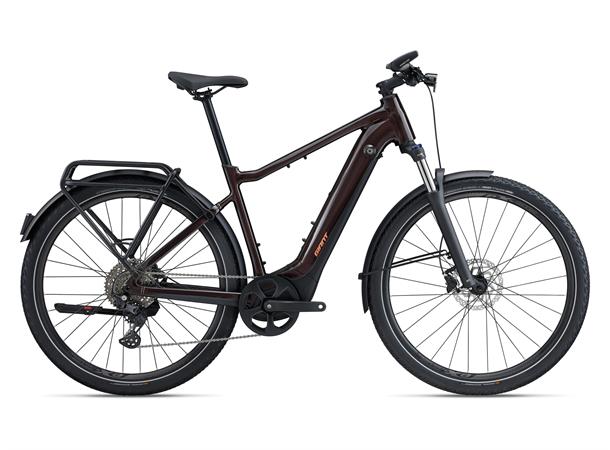

Model Name Explore E+ 1
Sizes Diamond: M, L, XL, XXL STA: S, M, L, XL
Colors
Motor SyncDrive Sport2, 75Nm, powered by Yamaha
Battery EnergyPak Smart 800
Controls RideControl Dash
Display RideControl Dash, full color lcd screen
Charger EnergyPak 4A smart charger compact
Frame ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount
Fork SR Suntour XCM34 LO, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle
Shock n/a
Handlebar Giant Connect Riser 31.8x690mm
Stem Giant Contact (S/M: 80mm L/XL/XXL 100mm)
Grips Gant Connect Ergo Max w/bar-end
Seatpost Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Saddle Selle Royal Vivo Ergo Moderate Unisex
Pedal Aluminum Platform
Shifters Shimano Deore, LinkGlide
Front Derailleur n/a
Rear Derailleur Shimano Deore LinkGlide, 10-speed, Shadow+
Brakes Shimano BR-MT200, hydraulic disc, 180mm
Brake Levers Shimano BL-MT201
Cassette Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
Chain Shimano LinkGlide, CN-LG500
Crankset Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring
Bottom Bracket n/a
Rims eX25, Tubeless Ready, 622x25 Aluminium
Hubs Giant eTracker, [F] 110x15 [R] 142x12
Spokes Stainless steel, e-bike optimized
Tires Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready
Lights Recon E HL50 StVZO [F]
AXA NYX 6-12V E-bike tail light with brake sensor [R]
Kickstand KSA40 direct mount kickstand
Carrier MIK rack. System bag & basket compatible
Fenders Alluminum
Lock ABUS Xplus battery lock
